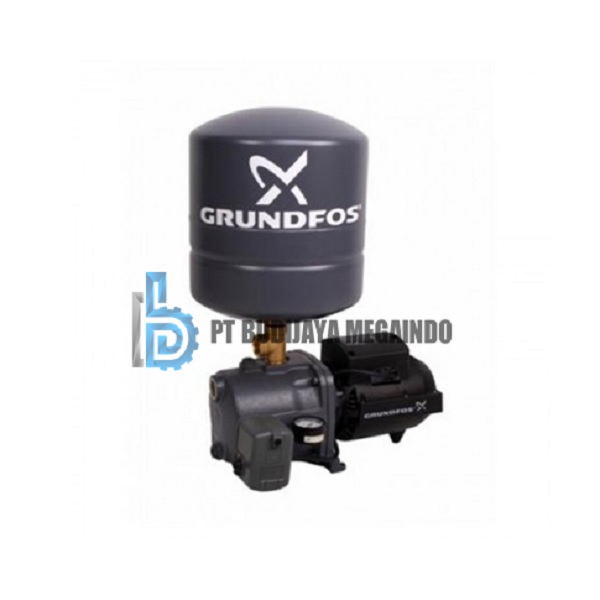

Pompa Air Pompa Sumur Dalam Grundfos JD 5

Maksimal level air	30m
Optimal level air	27m
Panjang pipa hisap	50m
Total Head(m)	30/35/40
Kapasitas(liter/m)	28/25/21
Voltage	1 x 220 - 240
P1 Max. ( kW)	1.56
P2 ( kW)	1.10
Material spesification
Badan pompa	Cast iron EN-GIL-200
Support	Cast iron EN-GIL-200
Impeller	Noryl GFN 2
Diffuser	Noryl GFN 2
Shaft with rotor	AISI 303 stainless steel X 10 Cr NiS 18.9Degree
Venturi tube and nozzle	Noryl GFN 2
Mechanical seal	Carbon/ceramin
O-ring gasket	NBR
Range operasi kerja	4.3m3/h
Temperature bendah cair	0 Deg.C to +35 Deg.c untuk penggunaan domestik
